A quotation for “GI ladder tray” is not a complete technical offer: the galvanizing route, usable width, load at the proposed support span, accessories and inspection records determine whether two prices are genuinely comparable. By the end, you will have a practical method for screening Nashik manufacturers, checking ladder-tray specifications and requesting documents that protect the installation from rework and premature corrosion.
Key takeaways
- Ask for controlled drawings showing steel thickness, width, rung spacing and splice details.
- Compare galvanizing route, coating finish and corrosion protection—not only price per metre.
- Match tray width and load rating to cable arrangement, support span and installation conditions.
- Put standards, inspection records, quantity and delivery dates in the quotation.
Start with the manufacturer’s factory, drawings and delivery capability
Do not compare a price per metre until you know what the metre includes. Ask each supplier to prove factory capability, submit a controlled drawing and confirm that the proposed quantity can be dispatched on your programme. A low quote can conceal thinner steel, smaller clear width, weak splices or a delivery delay.
1. Inspect or document the factory’s capability. Confirm cutting, punching, forming, welding, deburring and galvanizing arrangements, plus inspection equipment for thickness, dimensions, straightness and coating. Ask whether galvanizing is pre-galvanized sheet, electro-galvanized material or hot-dip galvanized after fabrication.
2. Request a drawing showing outside, nominal and inside clear width, side-rail height, thickness, rung spacing, rung attachment, splice-plate holes, bend radius and accessory interfaces. Use clear usable width for cable fill; outside width alone can produce an undersized tray.
3. Require a technical schedule naming steel grade, finish, splice hardware, support-span/load table, maximum working load and installation orientation. Ask the supplier to identify the declared or tested performance under IEC 61537. Do not accept an ultimate failure load as the working capacity.
4. Confirm the delivery plan in writing: quantity available, fabrication lead time, packing method, dispatch location, transport responsibility, replacement process for transit damage and inspection documents supplied with each lot. Include the dimensional drawing, material certificate, galvanizing record and inspection report in the quotation.
Use the same checklist for cable tray manufacturers in Nashik. Searches that combine cable tray manufacturers, ladder tray and GI cable trunking manufacturers in Nashik can mix open ladder support systems with enclosed trunking; compare like with like before requesting a final price.
Compare the ladder tray construction, galvanizing route and finish
Two trays marked 300 mm wide can deliver different usable capacity and installation effort. Ask each of the gi ladder cable tray suppliers for steel grade, sheet thickness, side-rail profile, rung spacing, dimensional tolerances and the declared load at the proposed support span—not only a metre rate.
| Route | Surface and exposed-steel risk | Where it fits |
|---|---|---|
| Pre-galvanized sheet | Zinc coating exists before cutting, punching and welding; check whether exposed edges receive repair treatment | Clean indoor areas with limited moisture |
| Electro-galvanized material | Thin, uniform zinc finish; protection is weaker after fabrication damage | Dry indoor installations |
| Hot-dip galvanized after fabrication | Zinc coats the completed tray, including welds and cut edges; inspect for runs, bare spots and blocked holes | Outdoor, humid and industrial locations |
| Painted or powder-coated steel | Adds a specified paint system over steel; chips and unsealed edges become corrosion points | Controlled indoor areas or a documented coating system |
Reject samples with twisted rails, unequal diagonals, sharp burrs, cracked welds or rungs that do not sit squarely between the rails. Check a coupler on actual samples: misaligned holes force field drilling, while a loose splice increases installation time and joint movement.
- Specify acceptable limits for straightness, squareness, hole position, splice alignment, burr removal and surface damage.
- Match the coating recommendation to rain retention, wash-down, chemical vapour and industrial emissions; request an ISO 12944 corrosivity-category basis for outdoor work.
- Do not treat GI cable trunking manufacturers as direct substitutes: trunking contains and shields cables, while ladder tray prioritises ventilation and access.
Select ladder tray by cable arrangement, width and application
Ladder tray is the right enclosure for power and control cables that need ventilation, easy access and support across long runs. Its open rungs suit large-diameter or heavily loaded cables, but not locations needing continuous physical protection, dust exclusion or secure containment.

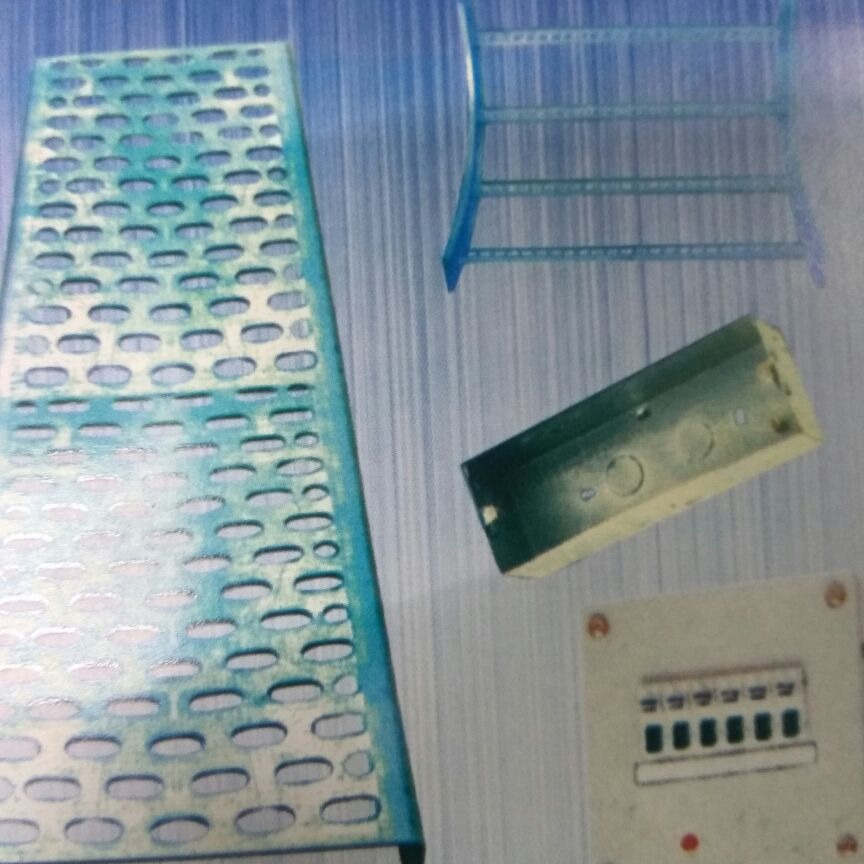

| Option | Best use | Choose another enclosure when |
|---|---|---|
| Ladder tray | Power, control and large cables; heat dissipation and frequent access matter | Cables need protection from impact, falling material or water |
| Perforated or solid-bottom tray | Smaller cables, debris protection or better cable support | Open ventilation and rapid access are priorities |
| GI trunking or conduit | Enclosed routes, segregation and physical protection | Cable heat dissipation, large bend access or heavy cable pulling dominates |
Calculate width from cable outside diameters, not the tray’s outside dimension. For a single layer, add the cable diameters, required separation between power, control, instrumentation and communication groups, and an installation allowance.
Then confirm that the quoted clear usable width remains adequate after side rails, rung intrusion and bend geometry; verify the cable bend radius at every elbow.
Ask cable tray manufacturers and GI cable trunking manufacturers in Nashik to state whether each dimension is nominal, outside or inside clear width. A quotation from GI cable trunking manufacturers must not substitute trunking for ladder tray without addressing changed heat dissipation, containment and support requirements.
Search wording such as cable tray manufacturers ladder tray gi cable trunking manufacturers in nashik should lead to a clear-width comparison, not a price-per-metre comparison.
Check load, support span and accessories as one system
A safe proposal proves the tray’s working load at your actual support spacing, not just its sheet thickness or ultimate failure load. Ask cable tray manufacturers in Nashik for a load/span table stating the maximum working load, support arrangement, installation orientation and declared deflection for the proposed width, material and rung configuration.
Check these points before accepting the quotation:
- Match the table to the planned span, including the distance between supports and any cantilever at bends or ends.
- Add the calculated cable weight, future spare capacity, covers and accessories; confirm the result remains below the stated working load.
- Require a deflection value or limit at working load. A tray can avoid collapse yet sag enough to reduce cable clearance and overload couplers.
- Check splice locations against the support layout. A joint between supports can reduce performance if the supplier’s table does not cover that arrangement.
- Specify IEC 61537 performance information, including the declared load class, mechanical test basis, electrical continuity and environmental conditions.
- Include bends, tees, reducers, risers, crosses, covers, couplers, hold-down clamps, support brackets and fasteners in the same system schedule.
Do not combine accessories from different GI ladder cable tray suppliers without checking rung geometry, splice-hole alignment and bonding continuity. A mismatched coupler can weaken the joint or leave an electrical discontinuity even when the straight tray sections appear identical. Get one coordinated drawing showing tray sizes, support positions, joints and every accessory quantity.
Put the required standards, records and service terms in the quotation
A quotation that says only “GI ladder tray, price per metre” cannot be audited after delivery. Require the quoted width to identify outside, nominal or inside clear width, because cable fill depends on usable width after side rails, rung intrusion, bends and circuit separation.
Specify IEC 61537 as the reference and record the declared load, support span, installation orientation and allowable working-load deflection.
Ask every cable tray manufacturers in Nashik or GI ladder cable tray suppliers to attach:
- A dimensioned drawing showing side-rail profile, rung spacing, splice plates, hole pattern and accessory quantities.
- Steel grade, thickness and galvanizing route: pre-galvanized sheet, electro-galvanized material or hot-dip galvanized after fabrication.
- A load or deflection declaration for the stated span, not a thickness claim alone.
- Material certificates, galvanizing inspection results, dimensional inspection records and the final packing list.
- Packing, identification and batch-marking details so damaged or mixed components can be traced.
| Quotation item | What to require | After-delivery protection |
|---|---|---|
| Tray system | IEC 61537 basis, load, span and deflection | Reject or investigate against declared values |
| Finish | Coating route, coating record and repair method for cut edges | Verify exposed steel and repair instructions |
| Accessories | Splices, bends, reducers, covers and fasteners listed separately | Prevent missing parts and unsafe substitutions |
| Service terms | Delivery inspection window, replacement for defects, drawing revision control and response time | Create a written remedy for nonconforming goods |
Keep ladder tray separate from GI cable trunking: the latter contains cables more fully and changes ventilation and access requirements. TIRUMALA ENTERPRISES should state these records and remedies in its quotation when the specified tray is being compared with trunking from gi cable trunking manufacturers.
Frequently asked questions
What should you ask ladder tray manufacturers in Nashik before comparing prices?
Ask for factory capability, controlled drawings, material details, production quantity, dispatch capacity and a delivery programme. Confirm exactly what the quoted price per metre includes.
How do you compare the construction and finish of a GI ladder cable tray?
Compare steel thickness, tray width, rung construction, splice design, galvanizing route and surface finish. Check whether the proposed finish suits the installation environment.
How do you select the correct ladder tray size?
Base the selection on cable arrangement, cable diameter, required clear width, future capacity, installation location and the application’s corrosion conditions.
What load and support information belongs in a ladder tray quotation?
Request the rated load at the proposed support span, deflection basis, support arrangement and a complete accessory list, including bends, tees, reducers, covers and splice plates.
Which records and service terms should you include in the purchase order?
Specify the approved drawing, material grade and thickness, galvanizing details, inspection records, test documents, quantity tolerance, packing, replacement terms and delivery date.
