A Pune quotation for a GI ladder tray is difficult to compare when “GI,” tray width and a per-metre rate are the only details shown. You will be able to identify the right tray form, specify its finish and load conditions, compare complete system costs, and shortlist suppliers using evidence rather than a low headline price.
Key takeaways
- Match tray width and bend fittings to the cable route before requesting quotes.
- Specify steel thickness, galvanising finish and tray dimensions in writing.
- Compare load capacity, supports, fittings, transport and installation—not only metre rates.
- Inspect galvanising, dimensions, rung joints and damage before accepting delivery.
Start by matching the tray form to the cable route

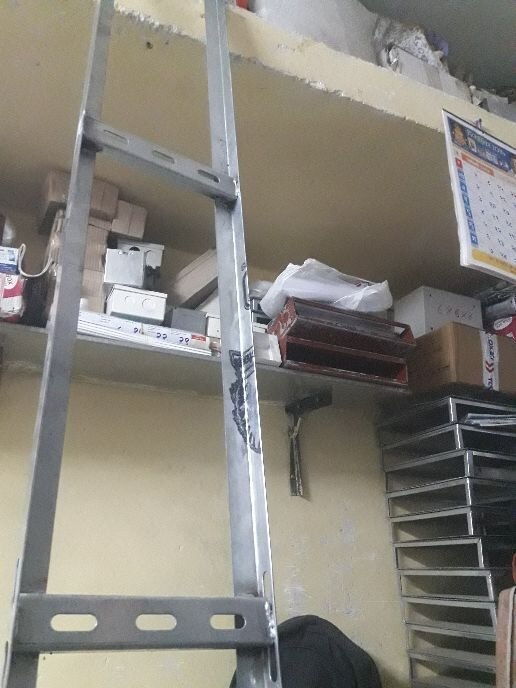

A GI ladder cable tray is an open support system made from two galvanised steel side rails joined by cross-rungs. The open design improves airflow, keeps cables visible for inspection and gives installers direct access for cleats.
It suits accessible indoor plant rooms, service corridors and many power-cable routes, but open construction is not automatically the safest choice.
| Option | Main feature | Choose it when |
|---|---|---|
| GI ladder tray | Side rails with open rungs; maximum airflow and access | Cables need cooling, inspection or cleating in accessible routes |
| Perforated tray | Perforated base provides more continuous cable support | Smaller cables need support between rungs or limited debris protection |
| Solid-bottom tray | Continuous base and better protection from small falling debris | Cable support and cleanliness matter more than maximum airflow |
| Enclosed GI trunking | Covered duct gives greater mechanical and contamination protection | Cables need shielding from impact, dust or contact |
| FRP tray | Non-metallic system with corrosion resistance | The verified environment is chemically aggressive or persistently wet |
Perforated and solid-bottom trays protect cables better than an open ladder tray, while enclosed GI trunking reduces airflow and makes visual access harder. A search for GI cable trunking manufacturers can return an enclosed product that is not a substitute for ladder tray.
Use covers, another tray form or FRP after checking dust, water, chemicals and impact exposure. Confirm cable segregation, fire requirements and project specifications before selecting the open design.
Specify width, steel and galvanising before asking for a Pune quote
1. Send a tray schedule, not only a total length, to gi ladder cable tray suppliers in Pune. Show each route, elevation, cable outside diameter and weight per metre, power-control segregation, largest cable bend radius, bends, vertical transitions, proposed support-span spacing and spare-capacity allowance.
Nominal width alone is insufficient: usable room is needed for separation, cleats, bends and future additions, while the largest cable’s bend radius can govern the route.
2. Put these dimensions and materials on the purchase order for GI ladder cable tray in Pune:
- Galvanised steel grade and sheet thickness
- Straight length, tray width and side-rail height
- Rung spacing and rung profile
- Splice plates, couplers and matching fasteners
- Required bends, tees, reducers, risers, covers and supports
3. Require the quotation to state whether the tray uses pre-galvanised sheet formed before fabrication or steel hot-dip galvanised after fabrication. Request the zinc-coating standard and coating mass or thickness, then ask how the supplier will protect cut edges, drilled holes, welds and damaged coating. A “GI” label does not prove equal coverage.
4. Reference IEC 61537 where it applies, but demand the actual design span, cable working load, allowable deflection and installation environment. The standard name alone cannot show whether the tray suits a rooftop, plant room or chemically exposed route.
Include temperature, moisture, dust and corrosive exposure so the galvanising system is selected against the site rather than assumed.
Compare structural capacity, fittings and installation—not just the running-metre rate
Two Pune quotations represent equivalent systems only when they state capacity under the same installation conditions. Compare cable load in kg/m, support span, allowable deflection, joint strength and concentrated loads from heavy cables or equipment; width and thickness alone prove nothing.
| Measure | Quote A | Quote B |
|---|---|---|
| Allowable load | kg/m at proposed span | kg/m at proposed span |
| Deflection | Limit under distributed and point load | Limit under distributed and point load |
| Joint strength | Splice capacity and test basis | Splice capacity and test basis |
Ask for the supplier’s allowable working load at your proposed span, plus the load-test or calculation basis: test arrangement, support spacing, load position, deflection limit and failure result. A short-span rating cannot validate a longer installation.
List the complete bill of quantities, not only straight metres:
- Straight lengths, splice plates, couplers, nuts and bolts, bends, tees, crosses, reducers, vertical risers, covers, support brackets, hangers, earthing or bonding jumpers and fasteners.
Installation details belong in the quotation. Specify support alignment and spacing, expansion allowance at building movement joints, bonded joints, cable cleats, each cable’s minimum bend radius, sharp-edge removal and safe working clearances.
Require a tested continuity or bonding arrangement where the tray forms part of an earthing or equipotential-bonding system; never assume the tray replaces a protective conductor.
Do not compare a ladder cable tray price in Pune until these quantities and assumptions match. A cheaper rate can exclude fittings, supports or bonding hardware.
Use the quotation to find the real delivered price in Pune and Maharashtra
A ladder cable tray price in Pune is not comparable until the commercial unit and technical basis are fixed. Require the quotation to state:
- Rate per running metre or per piece, standard piece length, steel thickness and side-rail dimensions.
- Pre-galvanised sheet or hot-dip galvanising after fabrication, including the zinc-coating standard or coating mass.
- Allowable working load and support-span assumption, plus straight sections, bends, tees, reducers, risers, couplers and covers.
- Separate quantities and rates for supports, bonding parts, fasteners, GST, freight, unloading and installation.
This prevents a cheap straight-tray rate from concealing an incomplete system. Ask who owns each manufacturing record.
| Supplier type | Verify before comparing | Main risk |
|---|---|---|
| Manufacturer | Who forms, welds and galvanises the tray; load-test records | Accessories may still come from another source |
| Trader | Original manufacturer, test documents and product traceability | Mixed-brand bends or couplers may not align |
| Fabricator | Welding method, galvanising route and design responsibility | Local alterations can weaken coating or joints |
Ask whether bends and couplers match the quoted straight sections in geometry, hole pattern and bonding continuity. For local sourcing, compare TIRUMALA ENTERPRISES with other GI ladder cable tray suppliers in Pune using one complete technical schedule, not the supplier name as proof of equivalence.
Include Pimpri-Chinchwad quotes on the same basis so freight and unloading do not distort the delivered Maharashtra price.
Related product
 | Reliance type tray manufactur we are View product → |
Inspect the shipment before it enters the installation
Reject the load before installation if it fails the quotation’s dimensions, finish or accessories. For a GI ladder cable tray in Pune, compare the delivered item against the approved drawing and tray schedule, not just an invoice marked “GI ladder tray”.
| Pre-galvanised steel | Zinc coating applied before forming; inspect cut edges, drilled holes and welds for exposed steel or thin coverage | Require the specified edge treatment and zinc-rich repair system |
|---|---|---|
| Post-fabrication hot-dip galvanised steel | Fabricated tray is immersed after cutting and welding; inspect welds, holes and all cut surfaces for continuous coating | Reject unprotected areas and record coating defects before acceptance |
- Measure width, side-rail depth, steel thickness and rung spacing at representative points.
- Check straightness, rung welds, burrs, sharp edges, hole positions and product identification.
- Confirm splice plates align, couplers fit without forced drilling, and supports suit the side rails.
- Verify bends, tees, reducers, risers, covers, fasteners and other accessories against the packing list.
- Record the galvanising process, coating details, damaged areas and repairs. Do not accept exposed steel; repair it with the specified zinc-rich system.
- Confirm bonding jumpers or continuity provisions are present wherever specified.
Obtain the approved drawing, tray schedule, galvanising details, load data at the stated support span, packing list and installation instructions. This inspection catches substitutions that a generic invoice will miss.
Frequently asked questions
How do you choose the right GI ladder cable tray form?
Map the route first, then select straight sections, bends, tees, reducers and vertical fittings that match its changes in direction and elevation. Confirm the tray width leaves room for cable spacing and future additions.
What specifications should you send to Pune suppliers for a quote?
State the tray width, side-rail height, steel thickness, section length, galvanising finish, quantity, fittings, support spacing and delivery location. A written specification lets you compare like-for-like quotations.
What should you compare besides the ladder cable tray price in Pune?
Compare structural load capacity, deflection at the proposed support spacing, included couplers and bends, support hardware, installation labour, transport, taxes and unloading. A lower running-metre rate can cost more after missing fittings and delivery are added.
How can you calculate the real delivered price in Pune or Maharashtra?
Add the tray sections, fittings, couplers, supports, fasteners, packing, freight, unloading, taxes and installation. Check whether the quotation prices straight lengths separately from accessories and states the delivery point.
What should you inspect when GI ladder cable trays arrive?
Check the purchase specification, quantities, dimensions, rung alignment, joint quality and galvanised coverage. Record bent rails, damaged coating, missing fittings and transit damage before the shipment enters installation.
